Amazon Managed Grafana Integration

Amazon CloudWatch OpenTelemetry metrics appear as a native data source in Amazon Managed Grafana. This means you can query both OpenTelemetry ingested and enriched AWS vended metrics in a single pane of glass and build dashboards in Grafana.

Access Grafana

Retrieve the Grafana URL and credentials (see Accessing Grafana):

~$kubectl get ingress -n grafana grafana -o=jsonpath='{.status.loadBalancer.ingress[0].hostname}{"\n"}'

~$kubectl get -n grafana secrets/grafana -o=jsonpath='{.data.admin-user}' | base64 -d; printf "\n"

~$kubectl get -n grafana secrets/grafana -o=jsonpath='{.data.admin-password}' | base64 -d; printf "\n"

Opening this URL in a browser will bring up a login screen.

Configure the AMP Data Source

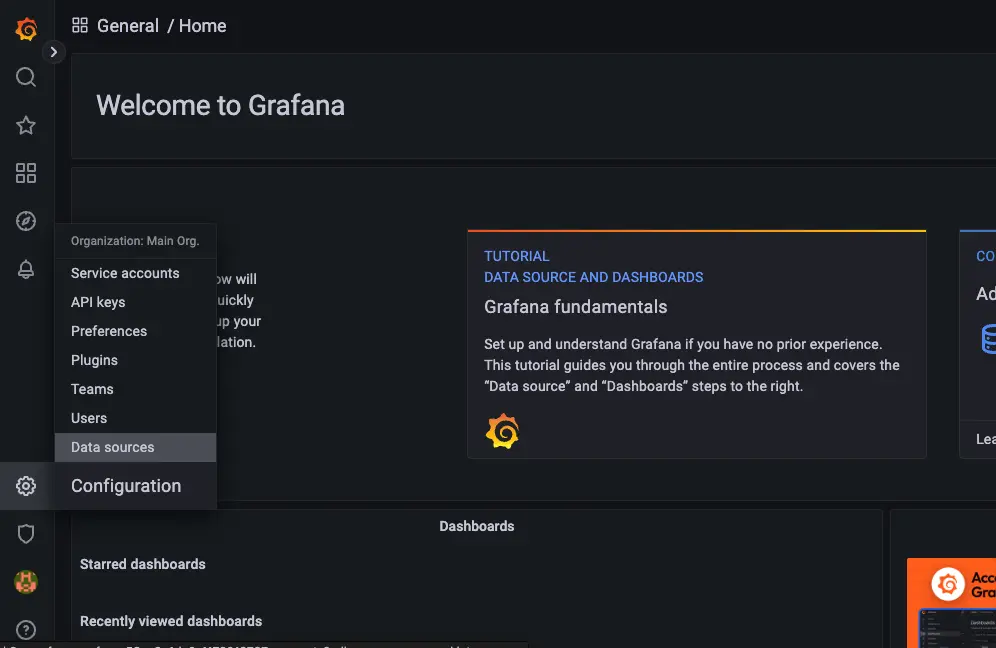

After logging into the Grafana console, let's take a look at the datasources section.

Lets manually add the Amazon Managed Service for Prometheus data source:

1. Go to Connections → Data sources → Add data source
2. Select Amazon Managed Service for Prometheus
3. Set URL to https://monitoring.<region>.amazonaws.com
4. Set Service Provider to monitoring
5. Set Region to your AWS Region
6. Choose Default Credential Chain as authentication provider
7. Click Save & test

Refer to the official documentation: CloudWatch PromQL
